All models feature Hawke's new H7 optics with high zoom ratio, supreme clarity and light transmission.
Precision build components and larger 34mm monotube construction designed for extreme long range shooting.

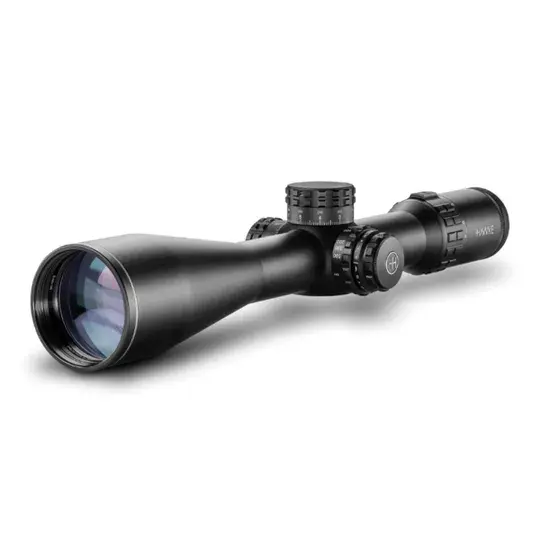

HAWKE FRONTIER 34 FFP 5-30X56 SF IR
Patented Exposed Zero Lock āNā Stop Elevation Turret
First Focal Plane (FFP)
34mm Mono-Tube Chassis
Side Focus
Illumination
Wide Angle FOV
High Volume Eyebox
102mm Eye Relief
Multi-LED High Intensity Reticle
High Grade, Low Dispersion Crown Glass
21 Layer Fully Multi-Coated Lenses
Zoom Magnification Throw Lever (Removable)
Fast Focus Eyebell With Lock Ring
Supplied With Professional Metal Flip-Up Covers.

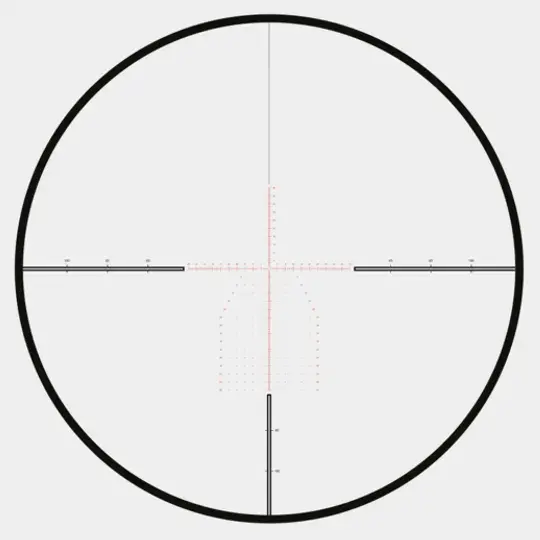

FFP Mil Pro Ext. Reticle (30x)
The FFP Mil Pro Ext. reticle was developed specifically for first focal plane optical systems and based around the common principles of Mil spaced reticles. With Mil spaced markings extending out to 15 Mil of holdover, the FFP Mil Pro Ext is a versatile reticle that provides aim points no matter how extreme the distance.
All reticle measurements are Mil spaced and offer 1 Mil, 0.2 Mil and 0.1 Mil brackets for range finding. Every Mil spacing on the lower section is numbered to ensure quick and easy acquisition of target and ease of reference.
The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.

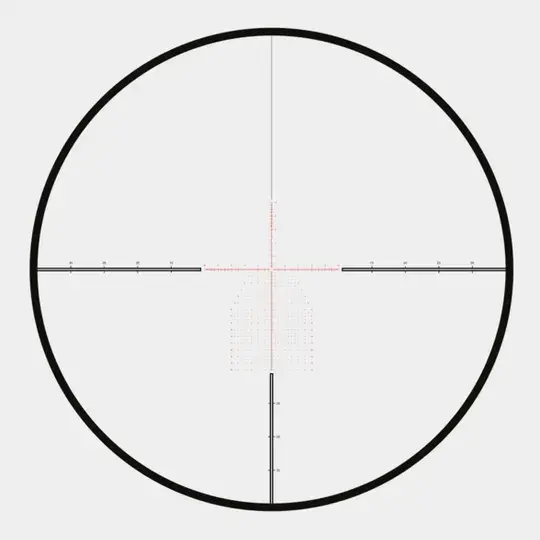

FFP MOA Pro Ext. Reticle (30x)
The FFP MOA Pro Ext. reticle was developed specifically for first focal plane optical systems and based around the common principles of MOA spaced reticles. With MOA spaced markings extending out to 60 MOA of holdover, the FFP MOA Pro Ext. is a versatile reticle that provides aim points no matter how extreme the distance. All reticle measurements are MOA spaced and offer 1 MOA and 0.5 MOA brackets for range finding. Every fourth MOA spacing on the lower section is numbered to ensure quick and easy acquisition of target and ease of reference.
The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.
Objective Lens
56mm
Reticle
LR Dot (16x)
Parallax
Side Focus
Magnification
5 - 30x
Optical System
System H7
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
6 Levels with Off Positions In-between - Red
Field Of View
7.5 - 1.2m @100m (22.5 - 3.6ft @100yds)
Field Of View
4.3 - 0.7-degrees
Eye Relief
102mm (4in)
PX/Focus
14m - Infinity (15yds - Infinity)
Exit Pupil
11.2 - 1.9mm (0.44 - 0.07")
Turret Type
Zero Lock 'n' Stop
Turret Caps
N/A
Click Value
1/4MOA
Elevation Turret Clicks (Max)
60 MOA
Windage Turret Clicks (Max)
60 MOA
Ocular Type
Locking Fast Focus
Power Selector
Knurled Posi-Grip with Removable Zoom Lever
Lens Coating
Fully Multi-Coated - 21 Layers
Length
401mm (15.8")
Weight
724g
